PVC/PVG Solid Woven Belt

  • Advantages & Applications:
    High strength fabric with low elongation, light carcass, shock resistant, anti-tear and good in trough ability.
    Especially suitable for material conveying at inflammable of underground coal mines.

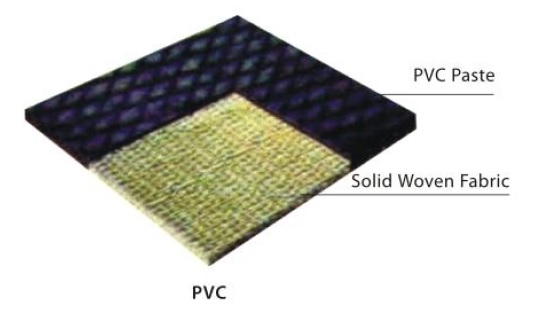

  • PVC Solid Woven Conveyor Belt:
    ※Suitable for applications in dry conditions at a slope angle of no greater than 16 degrees.
    ※Cover thickness can be from 0.5 to 4 mm.

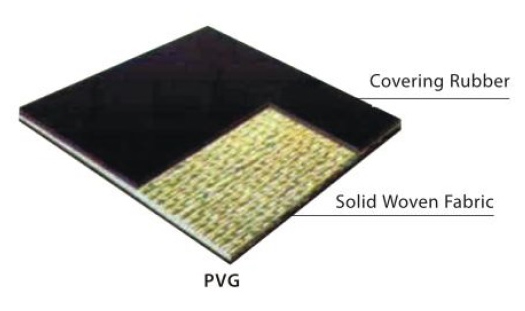

  • Nitrile Covered PVG type:
    ※Suitable for applications at a slope angle of less than 20 degrees, cover thickness can be from 1 to 8 mm.
    ※Resistance to wetness, slip, low temperature and wear resistance of the belt.
  • Available In:
    Belt Class: 680~3400KN/m
    Belt width: ≤ 2000mm
  • Standards:
    US: Title 30 Part 18 Section 18.65
    AU: AS 4606
    Canada: CSA M422-M87
    Germany: DIN 22109 Part1
    South Africa: SABS 971
    Spain: LOM
    English: BS 3289
    China: MT914-2008
